Description

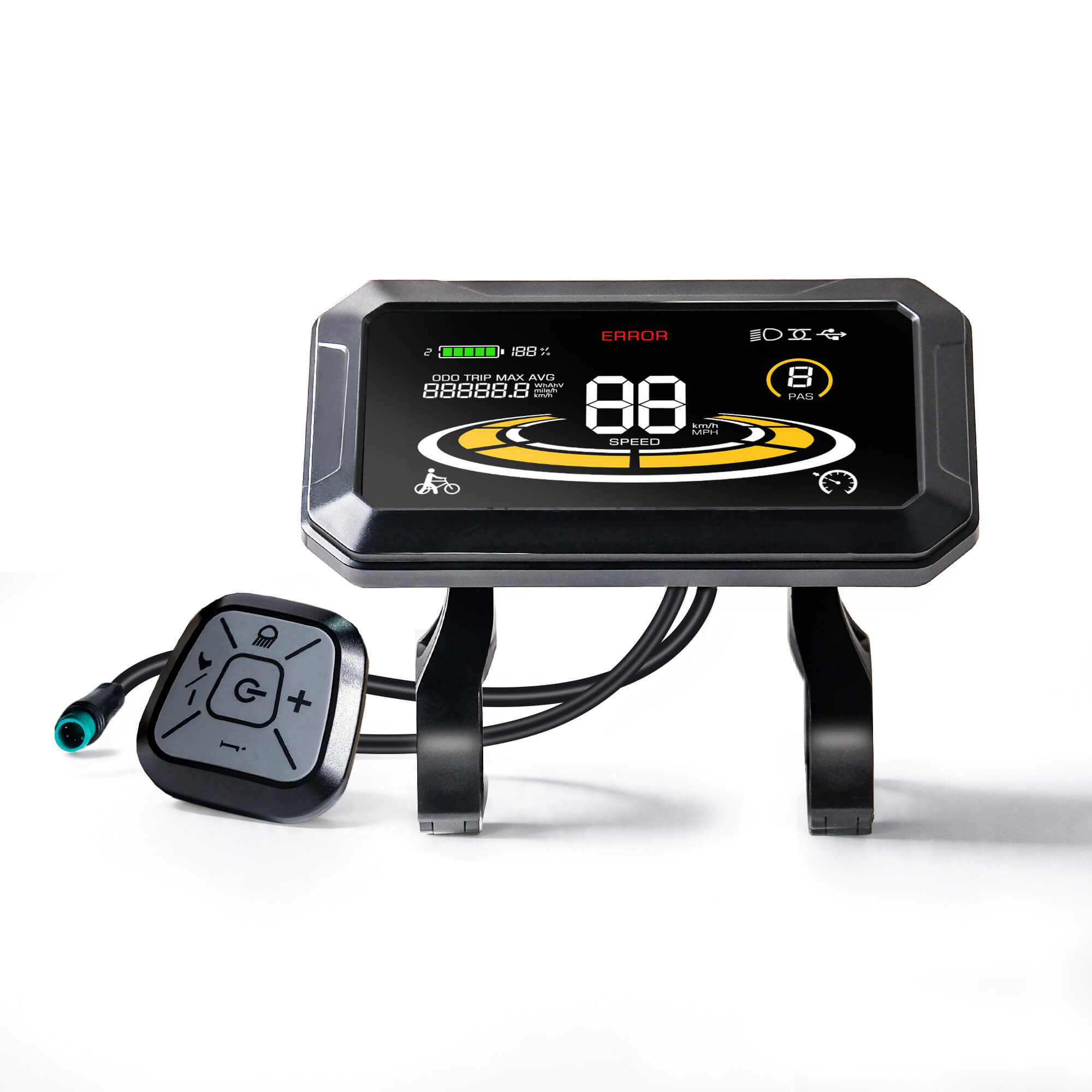

elektrofahrrad 90 km/h Yolin YL-90T-H LCD E-Bike Display – YolinTechThe Yolin YL 90T H is the horizontal version of the YL 90T V sport display series. It combines the dynamic styling of the 90T design with a landscape screen orientation suited for performance e bike cockpits. Wide Cockpit Display Layout The YL 90T H adopts a landscape screen orientation that aligns naturally with wide handlebars and integrated cockpit designs. The layout separates key riding data into clear zones for improved readability while riding.
The Yolin YL-90T-H is the horizontal version of the YL-90T-V sport display series. It combines the dynamic styling of the 90T design with a landscape screen orientation suited for performance e-bike cockpits.
Wide Cockpit Display Layout
The YL-90T-H adopts a landscape screen orientation that aligns naturally with wide handlebars and integrated cockpit designs. The layout separates key riding data into clear zones for improved readability while riding.
- Wide-format real-time speed display (mph/kmh system dependent)
- Multi-level PAS assist indication
- Battery level and voltage monitoring
- Integrated system error diagnostics
- Segmented ride data zones for quick readability
- Trip distance and odometer tracking
- Bluetooth & App connectivity (depends on system configuration)
The connector shown in the product images is the standard version. We offer various wiring harness options to ensure compatibility with your specific eBike model and electrical system. If you require a different connector, please contact our customer service team after placing your order.
Technical Specifications
| Model | Yolin YL-90T-H |
|---|---|
| Screen Orientation | Horizontal (Landscape) |
| Display Type | Advanced LCD smart interface |
| Communication Type | UART / CAN |
| Operating Voltage | 36V / 48V / 52V |
| Protocol Compatibility | Standard P1/P2 / 5S / LKLS / Custom |
| Connector Type | 5-pin waterproof round / SM / Custom |
| Handlebar Mount Options | 22.2 mm / 25.4 mm / 31.8 mm |
| Water Resistance | IP65 |
| Operating Temperature | -4°F to 140°F (-20°C to 60°C) |
